LEXUS ES-350/ES-240専用防水ナイトビジョンバックアップカメラ,CA-803
>Lens Angle:170°;
>Waterproof IP Ratting:IP67;
>Color:Black;
>TV System:NTSC/PAL;
>Signal:CVBC signal;
>Sony CCD or CMOS Lens;
>Night Lamp Available;
製品情報

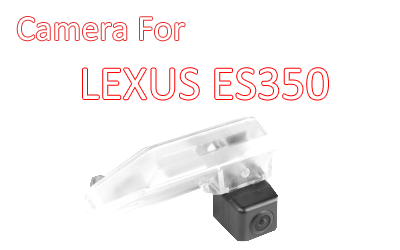

This waterproof car rear view backup camera is special for LEXUS ES-350, ES-240.This product is easy installation without drilling Hole. It is great that with the waterproof and night lamp function.
product feature
IP rating |
Ip66 |
Image Sensors |
1/3"SONY CCD |
TV System |
PAL/NTSC |
Effective Pixels |
628 × 582/628 × 492 |
Sensing Area(mm) |
4. 9 × 3.7 |
Resolution(TV Line) |
480 |
Horizontal Sync.Frequency (KHZ) |
15.625/15.734 |
Vertical Sync.Frequency (HZ) |
50/60 |
Video output |
1Vp-p,75Ohm |
Gamma Consumption |
0.45 |
AGC |
Auto |
BLC |
Auto |
S/N Ratio |
Betterthan 48dB |
Lens Angle (Deg.) |
170 ° |
Current Consumption (mA) |
200 |
Power Supply (DCV) |
12 |
Operating Temperature (Deg.C) |
-20~+70(RH95%MAX.) |
Storage Temperature (Deg.C) |
-40~+80(RH95%MAX.) |
