3.5inch Car Rear Viewmirror  Multiple Display Rearview mirror,HK-0353535LA
  • 3.5inch Car Rear Viewmirror  Multiple Display Rearview mirror,HK-0353535LA
  • 3.5inch Car Rear Viewmirror  Multiple Display Rearview mirror,HK-0353535LA
  • 3.5inch Car Rear Viewmirror  Multiple Display Rearview mirror,HK-0353535LA
  • 3.5inch Car Rear Viewmirror  Multiple Display Rearview mirror,HK-0353535LA

3.5inch Car Rear Viewmirror Multiple Display Rearview mirror,HK-0353535LA

>support backup camera display
>support auto dimming function(option)
>auto brightness adjustment
>three 3.5 inch screens display
>6 video+1 audio input
>support infrared operation
>4.0mm glass and Ф 23mm car factory OEM bracket


Product Info

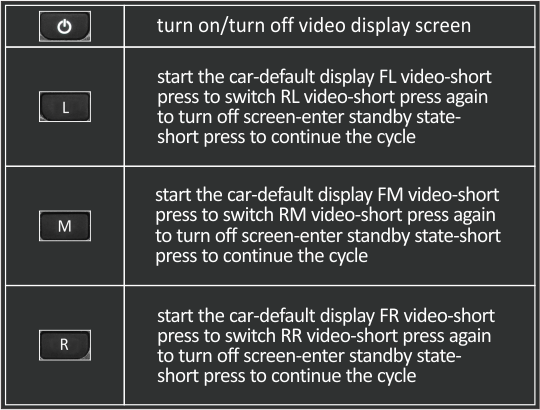

How to display the rearview mirror screen.







       After the product is power on and displays the boot Logo (if in the display logo process, cut reversing signal,then  interrupt boot logo display, enter the reverse mode), in the default standby state, if there is VIDEO signal, the screen display video view and standby indicator is off. In this state, short press the button  power to close or open the screen display.
       If it detects the reverse signal,the mirror enter into reverse mode. if there is a reversing camera video signal, the LCD monitor is turned on, while closing the standby indicator. if there is no back-up camera video signal, then the LCD monitor is turned off, while the standby light is turned on; Only does the reverse signal disappears, it can exits CAMERA state, back to VIDEO states. Please note: It is the normal phenomenon there will be a short jump process when swift the video.
        When the mirror is connected to the power firstly during driving, the car monitor is shown in front of the video image. If the user press button to switch to car rear video images manually, the program will have a memory , and the car monitor is shown in back of the video image.
       In case of sudden emergency brakes, rear video mirror will automatically switch to the car front images to the behind images of the car. it will automatically return to the car front video after releasing the brake. After exiting trigger line working state, the car monitor will return to the video image before trigging.
