7.2 inch LCD Screen rearview mirror With Backup Camera,MK-072LA
  • 7.2 inch LCD Screen rearview mirror With Backup Camera,MK-072LA
  • 7.2 inch LCD Screen rearview mirror With Backup Camera,MK-072LA

7.2 inch LCD Screen rearview mirror With Backup Camera,MK-072LA

> Backup camera display
> Two video input
> 4.0mm  thick glass
> Automatic brightness adjustment
> 7.2  inch ultra-high brightness screen
> Compass (option)
> Temperature (option)
> Adjustable guide line (option)
> Android system navigation(option)
> Bluetooth (option)
> Full HD Recording (option)


Product Info

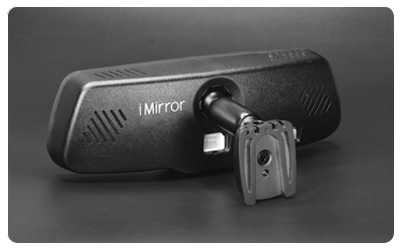

Remove the original mirror from the bracket base, then install the rearview mirror on the base and connect the cable to power. The mirror will get power via ACC, and displays built-in three-channel display function.

1. Installation: replace the original car's ordinary mirror ,and install full screen display reverview mirror;
2. adaptable models: Universal model, variety of models

1、Support panoramic reversing display
2、Automatic LCD backlight brightness adjustment
3、Split screen and full screen mode switching
4、Adjustable guide line .
Function description:
   After the product is power on under normal using ,the LCD brightness will be changed by the ambient light. It will be automatically adjusted to the brightest in the daytime and to fit for human eyes to watch the brightness at night. . Rearview mirrors need to be connected the ACC, GND, the BACK, for the power and controlling  reverse camera display .

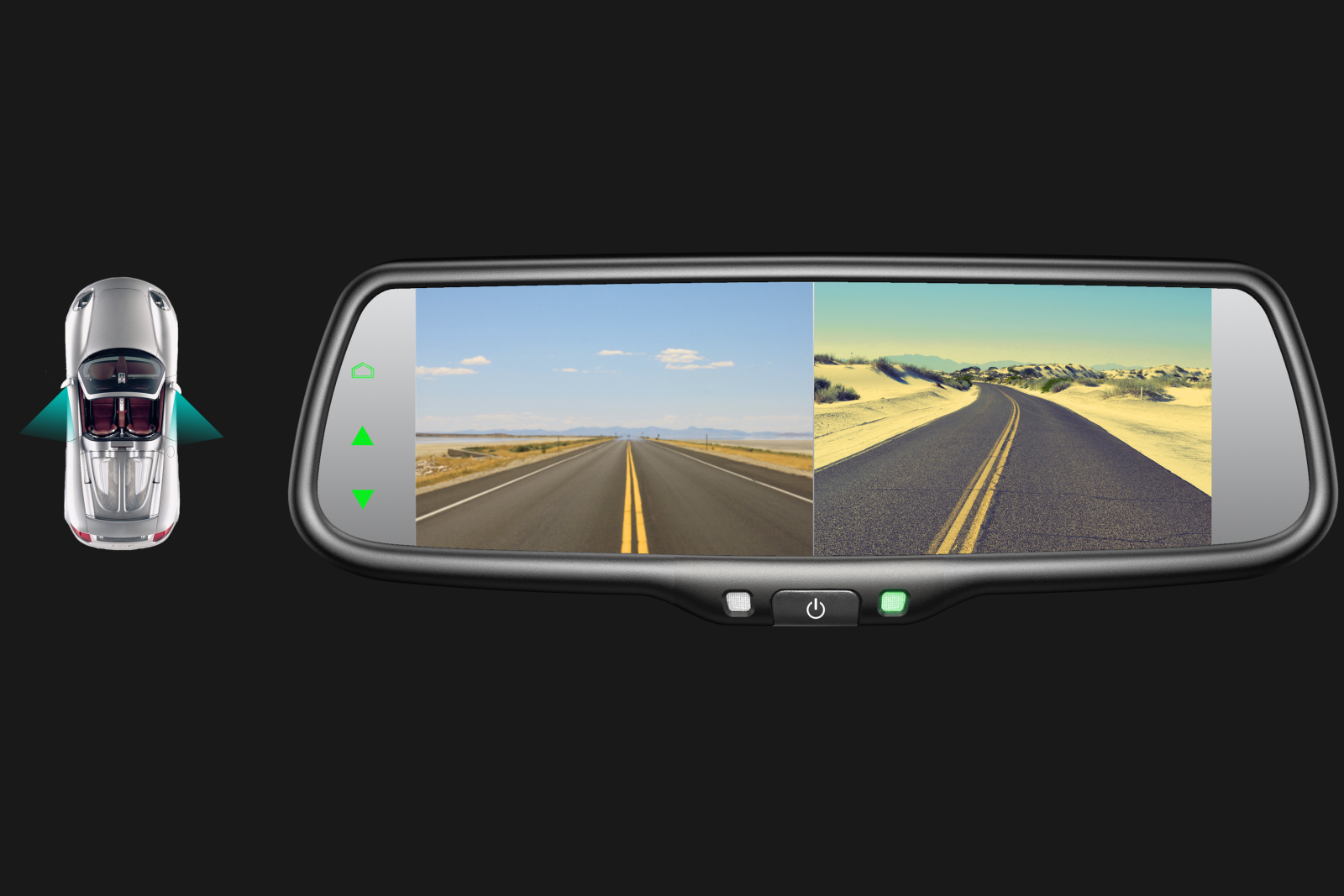

   Status A: In normal driving, the car monitor can display left and right video, to facilitate drivers to observe the condition of the rear (There will be different video displayed on mirror according to the different location of cameras ).

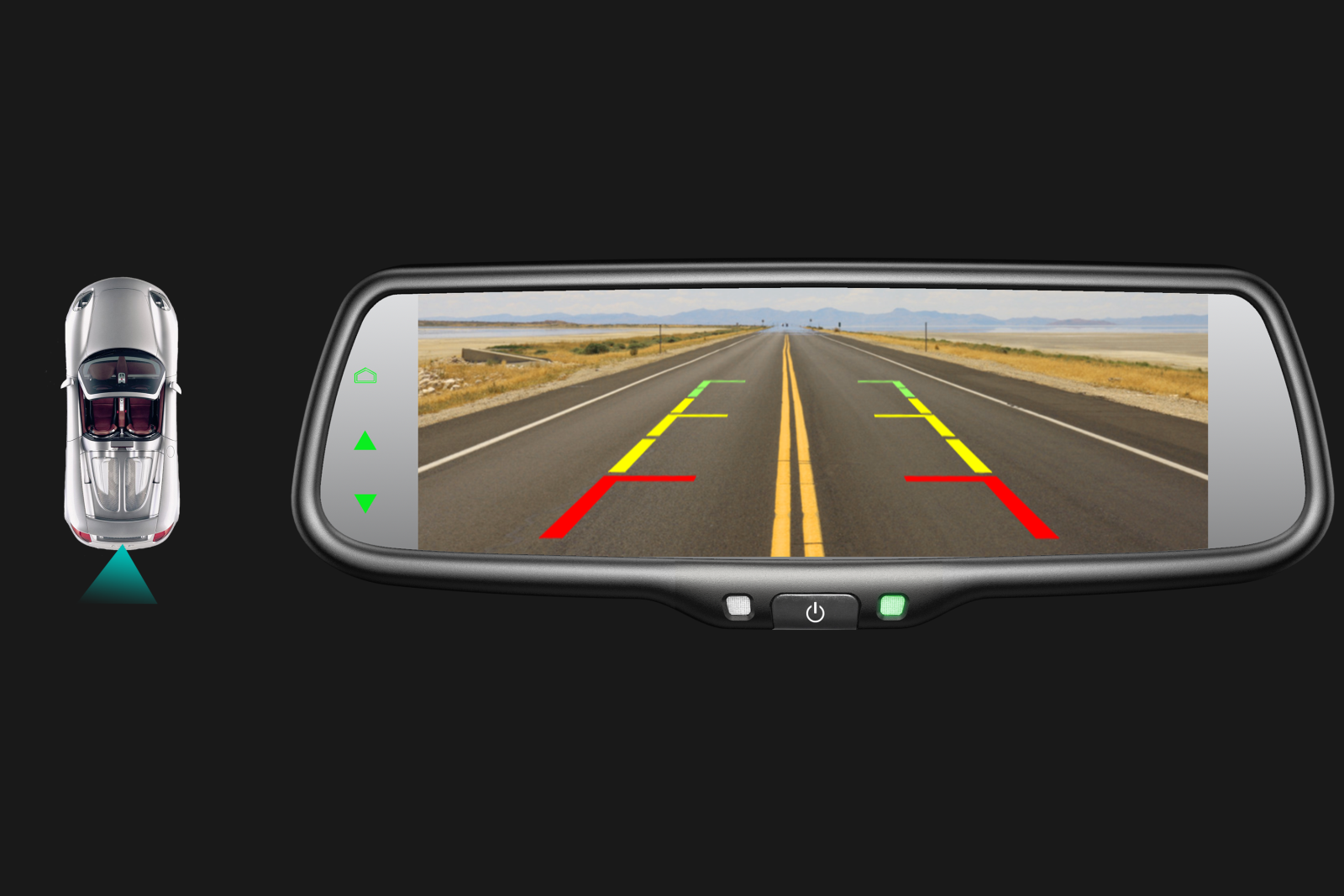

Status B: When the car is in reverse , after hanging into the reverse gear, rearview mirror will display full screen reversing images.
